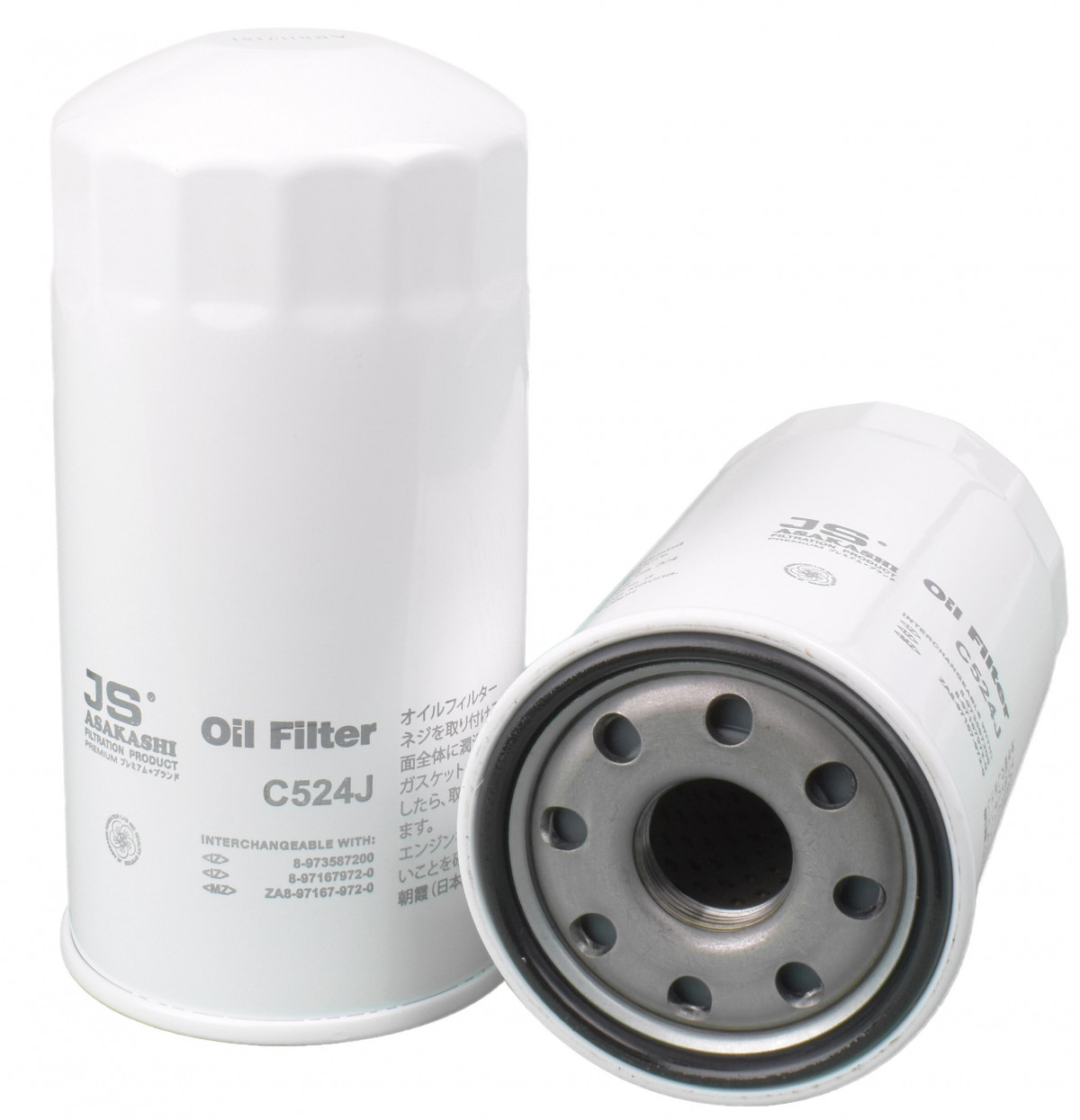

OIL FILTER (SPIN-ON) » C524J

Feedback information

Specification

Height
160
Ø Out
80
Thread
M26x1.5
Structure Material
Metal
O-Ring gasket
64x74 rnd
Valves
1.0 bar/1
type
Full Flow
Media Material
Paper Element

Cross reference

ISUZU
5-87610-017-0
ISUZU
5-87615-005-0
ISUZU
8-97167-972-0
ISUZU
8-97358-720-0
ISUZU
V9111-0021
MAZDA
ZA8-97167-972-0
NISSAN
AY100SZ005
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HONDA   »   Horizon

03.98~09.02 3000 4JX1-T UBS73 C524J A2004 FC607J

ISUZU   »   Alterra

03.05~10.13 3000 4JJ1-TC UCR85 C524J A2004 FE0025   JT308K

ISUZU   »   Bighorn

02.98~09.02 3000 4JX1-T UBS73DW C524J A2004 FC607J
02.98~09.02 3000 4JX1-T UBS73GW C304JC524J A2004 FC607J

ISUZU   »   D-Max

10.08~12.11 2500 4JK1-TCX TF_86 C524J A9610 FE0025 AC3507C
10.06~01.12 3000 4JJ1-TC TFR85 C524J A2004A9610 FE0025
01.09~12.11 3000 4JJ1-TCS TFS85H RHD C524J A2004 FE0025
08.08~ 3000 4JJ1-TCS TF_85 C524J A2004 FE0025   JT308K
06.03~ 3000 4JJ1-TCX TFS85 C524J A9610 FE0025 AC211C

ISUZU   »   Mu, Wizard

05.98~08.02 3000 4JX1-T UES73FW C524J A2004 FC607J   JT435K

ISUZU   »   Pickup TFR

01.04~12.08 2500 4JK1-TCX TFR86 C524J A9610 FE0025
10.08~07.10 2500 4JK1-TCX TFR86 C524J A9610 FE0025
01.04~12.11 3000 4JJ1-TCS TFS85H LHD C524J A2004A9610 FE0025   JT308K
01.04~12.11 3000 4JJ1-TCS TFS85H RHD C524J A2004 FE0025

Exemption from liability: the catalog data is advisory and can be used for reference only
